Enware Wall Faced Rimless Close-Coupled Toilet Suite – Raised
Product Information
A perfect mix of robust and commercial quality together with sophisticated and timeless design made to the highest standards of quality craftsmanship.
This water saving toilet suite is well suited for a broad range of applications including hospital en-suites, ambulant toilets along with residential aged care and independent living units. Its raised height and rimless design underline its suitability in terms of high infection control, hygiene and care.
A design that matches Enware’s comprehensive range of wash basins and adaptable vanities for a complete solution.
- Raised height, Rimless flush
- Wall faced, Easy to clean surface, Compact design
- Vitreous China, 4.5 / 3 Litre Dual Flush, Soft close seat
- Geberit flushing technology, Pan load tested to 400kg
- P or S Trap (S-trap Adaptor included), Back Inlet - High level, Concealed fixing brackets and screws
- Coving profile of skirting includes extended lead-time. Plumbing contractor to confirm final skirting profile before ordering.
- Watermark: WM-022627
- WELS: 4 Star Rating
Water Supply
| Water Supply Inlet Pressure | Min. 50 kPa - Max. 500 kPa |
Inlet & Outlet
| Inlet Connection | 1/2” BSP (DN15) |
| Water Inlet Connection Method | Back Inlet |
| Outlet Connection | DN100 DWV PVC (S-Trap Adaptor) / DN100 DWV PVC Pan Collar (P-Trap) |
| Product Code | Description | FINISH | MIN FLUSH FLOW RATE | AVG FLUSH FLOW RATE | PRIMARY FLOW RATE | |
|---|---|---|---|---|---|---|
| EBTW610R | Enware Wall Faced Rimless Close-Coupled Toilet Suite – Raised | Vitreous China | 3 | 3.4 | 4.5L/minute | Add to spec |
| EBTW610R-C | Enware Wall Faced Rimless Close-Coupled Toilet Suite – Raised – With Coving | L/minute | Add to spec | |||

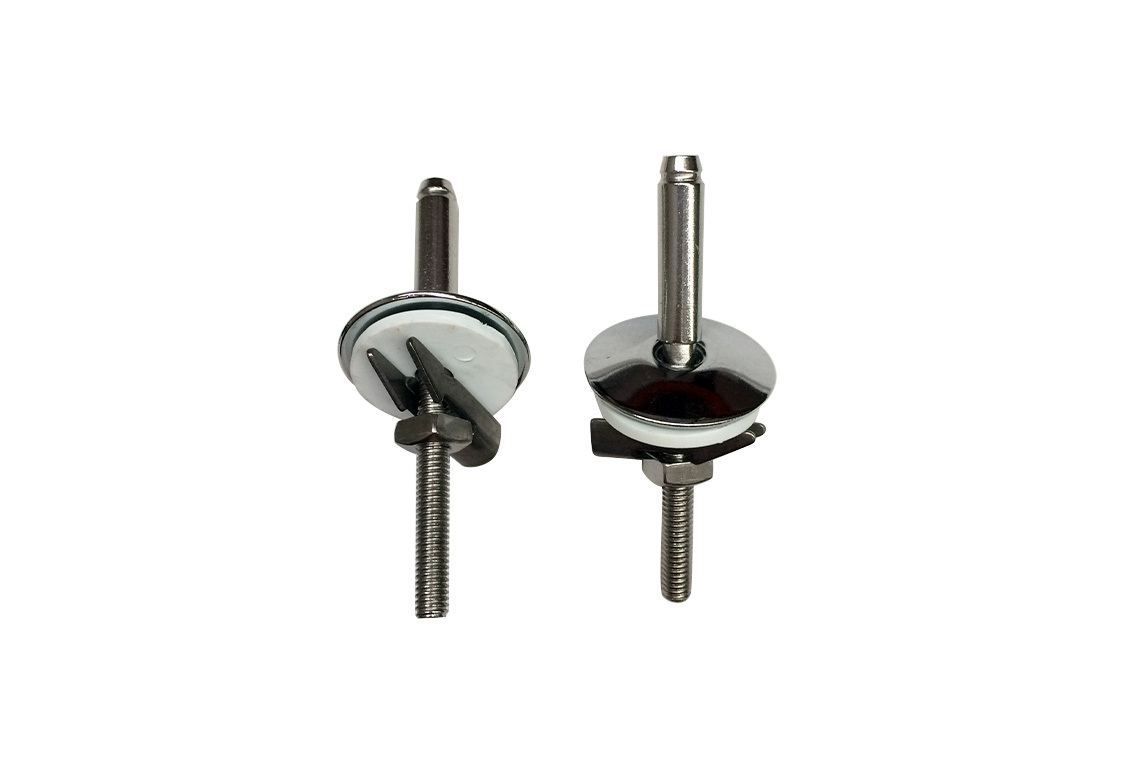

| EBTWS100 | Enware Wall Faced Rimless Close-Coupled Toilet Suite – Raised – EBTWS152 Hinge Kit For Soft Close Seat | L/minute | Add to spec |
