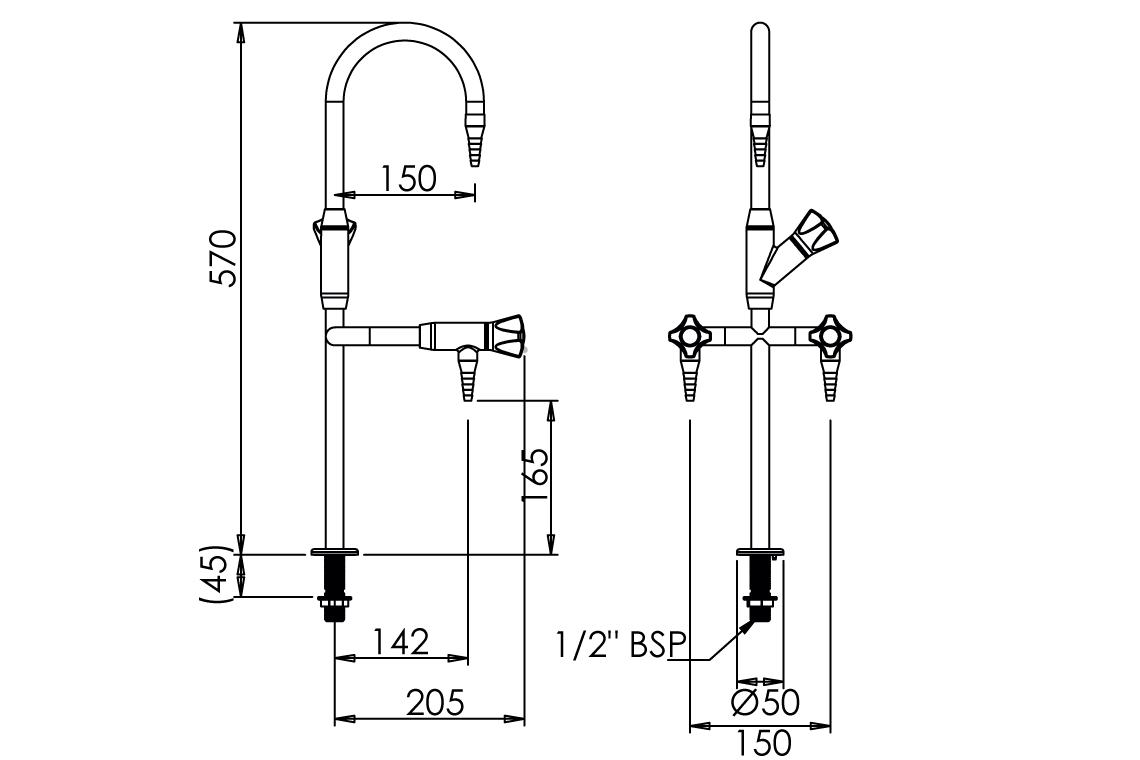

Slimline 3-Way Bench Mounted Laboratory Tap with 2 Fixed and 1 Swivel Gooseneck Outlet
Product Information
Enware’s Slimline laboratory outlets are supplied with a tapered tube nozzle and are assembled for each specific media type. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and finger tip control. Handles are colour coded for easy service identification and use complimentary buttons.
- Ceramic disc (3/4 turn)
- Durable powder coat finish
- Handles and indicator button to suit specified media
- Tube nozzle with flow control and dual check valves
- Two fixed outlets, one swivel gooseneck spout
- WaterMark: AS/NZS 3718 WMKA 1583
- WELS: 5 Star Rating
Inlet & Outlet
| Inlet Connection | 1/2” BSP Male |
| Outlet Connection | Tube Nozzle, 3/8” BSP Female (without nozzle) |
Pressure
| Working Pressure Range – Ceramic Disc | 20 - 700 kPa* (Water) |
| Maximum Testing Pressure | 1000 kPakPa |
Temperature
| Working Temperature Range | 0 - 90 °C |
| Water Options | Cold, Hot Note: Client to specify media type |
| Product Code | Description | FINISH | VALVE | PRIMARY FLOW RATE | |
|---|---|---|---|---|---|
| LCN103 | Slimline 3-Way Bench Mounted Laboratory Tap with 2 Fixed and 1 Swivel Gooseneck Outlet – Ceramic Disc – Water Only | Powder Coating | Ceramic Disc | 6L/minute | Add to spec |
