Enware-Delabie Time Flow Sporting Shower Module
Product Information
Attractive and compact sporting panel shower ideal for public spaces and amenities, poolside or at the beach. Wall mounted time flow shower panel for cold or mixed water. Features a preset 30 second* run time with an easy to operate button and a low flow showerhead.
- Soft-touch operation
- Anodised aluminium satin chrome finish panel
- Time flow 30 sec* (-10/+5 secs)
- Adjustable connector for top or back inlet
- Slimline structure with vandal resistant concealed fixings
- Tamperproof fixed shower head with scale-resistant nozzle and build-in flow rate regulator
- Adjustable spray angle can be locked in place
- Non-return valve and filter
- Integrated stopcock
- ½” BSP male inlet connection for cold or mixed water supply
- WELS: 4 Star Rating (6 L/min fixed)
- WaterMark: AS/NZS 3718 WM20302
Pressure
| Working Pressure Range | 150-500 kPa |
| Recommended Pressure | 250-350 kPa |
| Maximum Pressure for testing only | 750 kPa For testing purposeskPA |
Temperature
| Maximum Water Temperature | 60°CC |
Flow Rate
| Flow Rate | 6 L/min |
Time Flow
| Flow Time | 30 Seconds +5/-10 |

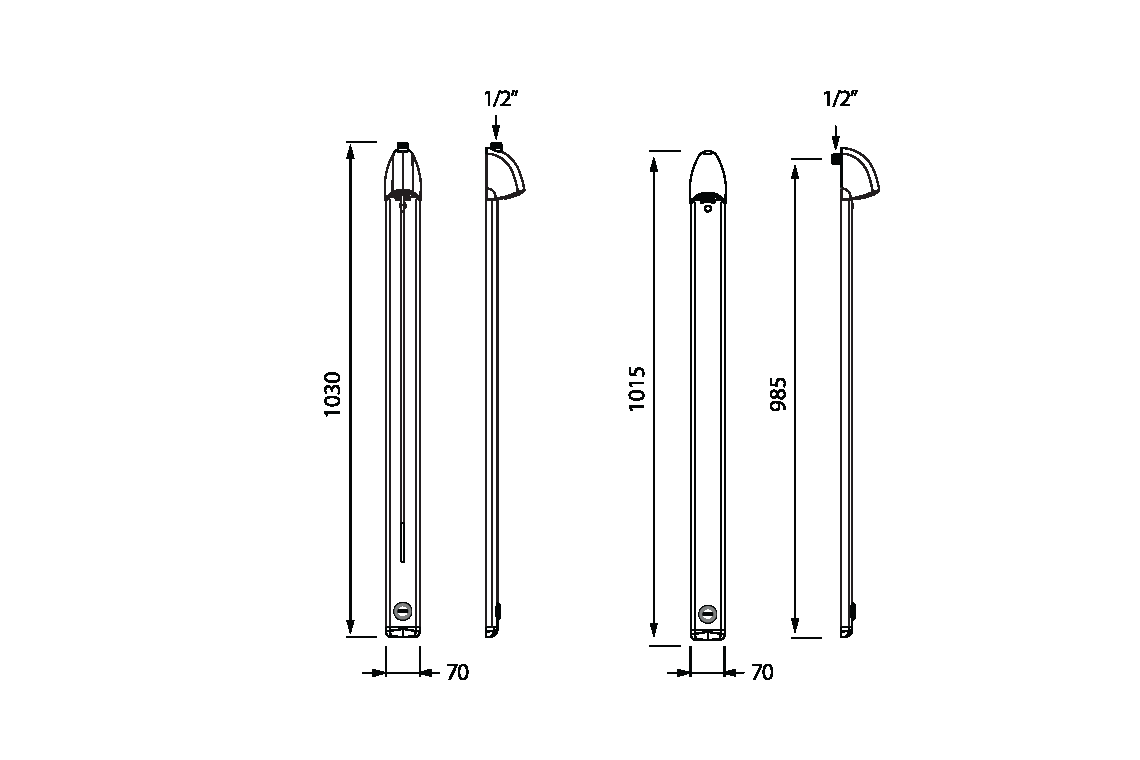

Dimension
| Operating Force | 25N @ 300 kPa |
Inlet & Outlet
| Inlet Connection | 15mm (1/2 BSP) Male |
| Product Code | Description | VALVE | |
|---|---|---|---|
| TFC714700 | Enware-Delabie Time Flow Sporting Shower Module | Time Flow | Add to spec |
