Aquablend Thermostatic Mixing Valve 1000 – Lead Free TMV
Product Information
Enware Aquablend thermostatic technology provides superior control to ensure scald protection and temperature control under the most challenging conditions of hydraulic pressure and temperature variation and at ambient start up.
The proven performance, reliability and low whole of life cost makes Aquablend the popular choice with specifiers, engineers, plumbers and property owners.
Lead Free brass construction with durable and easy to service components and high available flow rates, the Aquablend 1000 is ideal for commercial and high density multi-point applications.
- Scald and thermal shock protection with rapid thermal shut-off should either the cold or hot water supply fails
- Highly responsive temperature control, maintaining outlet temperature within +/- 2˚C under changing inlet temperature and pressure conditions
- Delivers excellent flow, operating at a minimum pressure of 20kPa
- Supplied complete with isolating valves, non-return valves and dual stage strainers incorporating temperature/ pressure test ports
- Available pre-plumbed in a Stainless Steel cabinet with hinged lockable lid
- Flexible installation - can be upside down or sideways, inlet and outlet connections may be rotated to suit pipework design
- Standards licensed to AS4032.1 - Thermostatic Mixing Valves
| Product Code | Description | |
|---|---|---|
| ATM710 | 15mm Inlet 15/20mm Outlet | Add to spec |

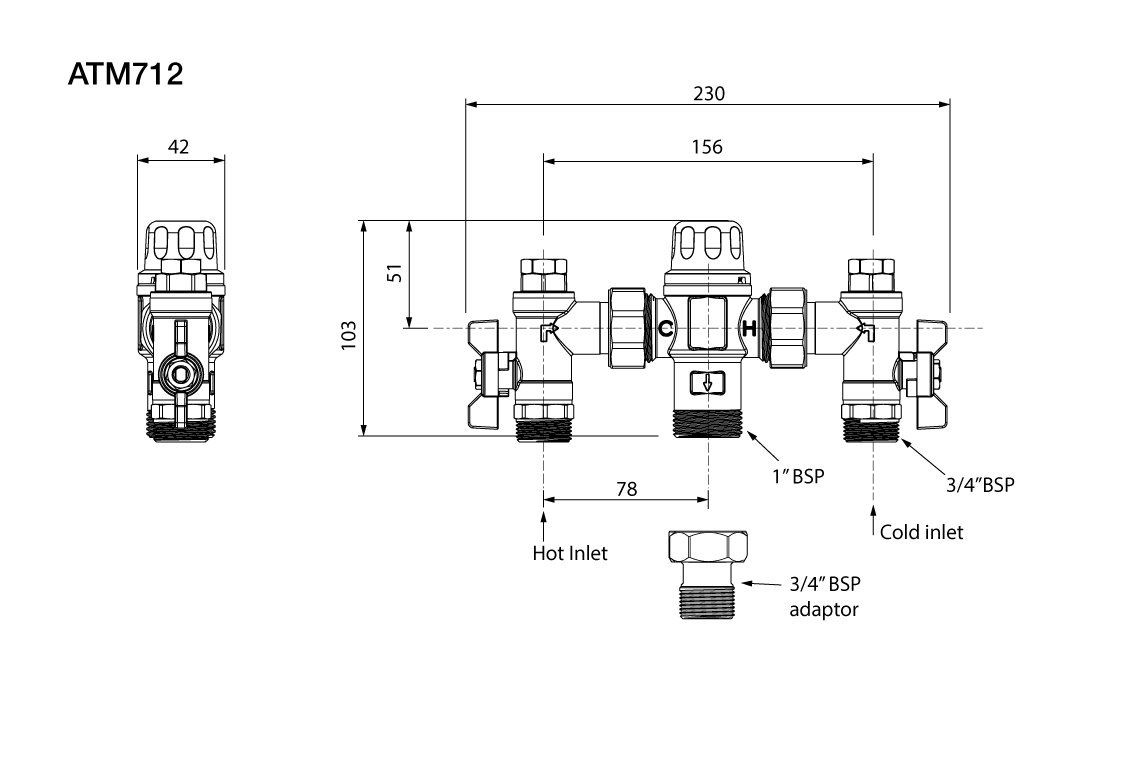

| ATM712 | 20mm Inlet 20/25mm Outlet | Add to spec |
| ATMS710H-350 | Aquablend 1000 Thermostatic Mixing Valve – 350×350 SS Cabinet – HW/CW/WW Pipes at Bottom | Add to spec |
