ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach
Product Information
Enware’s ComLab Fume Cupboard fittings are available in a wide range of connection types. Complimentary outlets and hoses are available for a complete installation solutions.
ComLab handles are ergonomically designed for precise feel and finger tip control. Handles are colour coded for easy service identification and use complimentary buttons.
Outlets are also colour coded for easier identification with media type.
- The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage
- Ergonomic design for finger tip control, metal handle colour coded with button for media identification to DIN EN 13792
- Tube nozzle

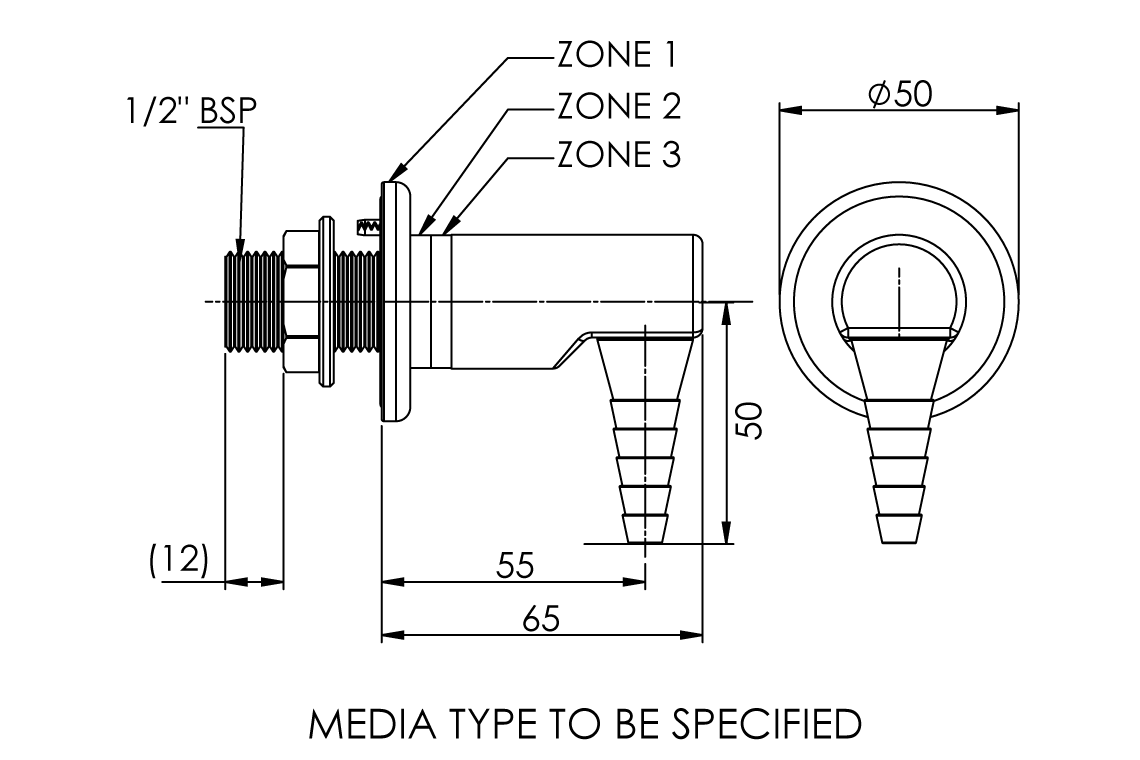

- Outlet colour identification to match media control; back plate is zone 1, middle ring is zone and front ring is zone 9
Pressure
| Maximum Working Pressure – Needle Valve | 700kPa (Burning GA |
| Maximum Working Pressure – Push-to-Turn Valve | 7kPa (Burning GA |
Inlet & Outlet
| Outlet Connection | Tube Nozzle | 3.8" BSP Female (without nozzle) Other options available |
| Product Code | Description | FINISH | |
|---|---|---|---|
| LCN161SAR | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Argon | Powder Coating | Add to spec |
| LCN161SC2H2 | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Acetylene | Powder Coating | Add to spec |
| LCN161SCB | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Carbogen | Powder Coating | Add to spec |
| LCN161SCHWH2O | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Chilled Water | Powder Coating | Add to spec |
| LCN161SCO2 | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Carbon Dioxide | Powder Coating | Add to spec |
| LCN161SCWH2O | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Cold Water | Powder Coating | Add to spec |
| LCN161SH2 | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Hydrogen | Powder Coating | Add to spec |
| LCN161SHE | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Helium | Powder Coating | Add to spec |
| LCN161SHWH2O | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Hot Water | Powder Coating | Add to spec |
| LCN161SLPG | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – LPG | Powder Coating | Add to spec |
| LCN161SO2 | ComLab 90 Degree Fume Cupboard Outlet – 55mm Reach – Oxygen | Powder Coating | Add to spec |
