Emergency Eye/Face Wash Pedestal Mounted – Hand/Foot Operated (SS/Green/White/Yellow)
Product Information
Enware’s emergency eye/face wash units help to flush contaminants and irritants from eyes and facial area. Stainless steel construction provides superior durability and reliability.
- Independently tested to comply with ANSI Z 358.1 and AS 4775
- 316 Stainless steel bowl, stay-open ball valve and hand actuator
- Freestanding for stand-alone operation
- Hand push and foot activated eye/face wash with integral auto-open dust covers
- Eye/face wash features Vertech Technology where dedicated eye wash and independently angled face wash streams deliver optimum coverage
- Zero velocity apex point provides more comfort and control for effective flushing of eyes with soft aerated flow
- Solid stainless, low angle foot pedal for easy activation of eye/face wash
- High visibility yellow powder coated push handle
- Powder coated options available for extra chemical resistance

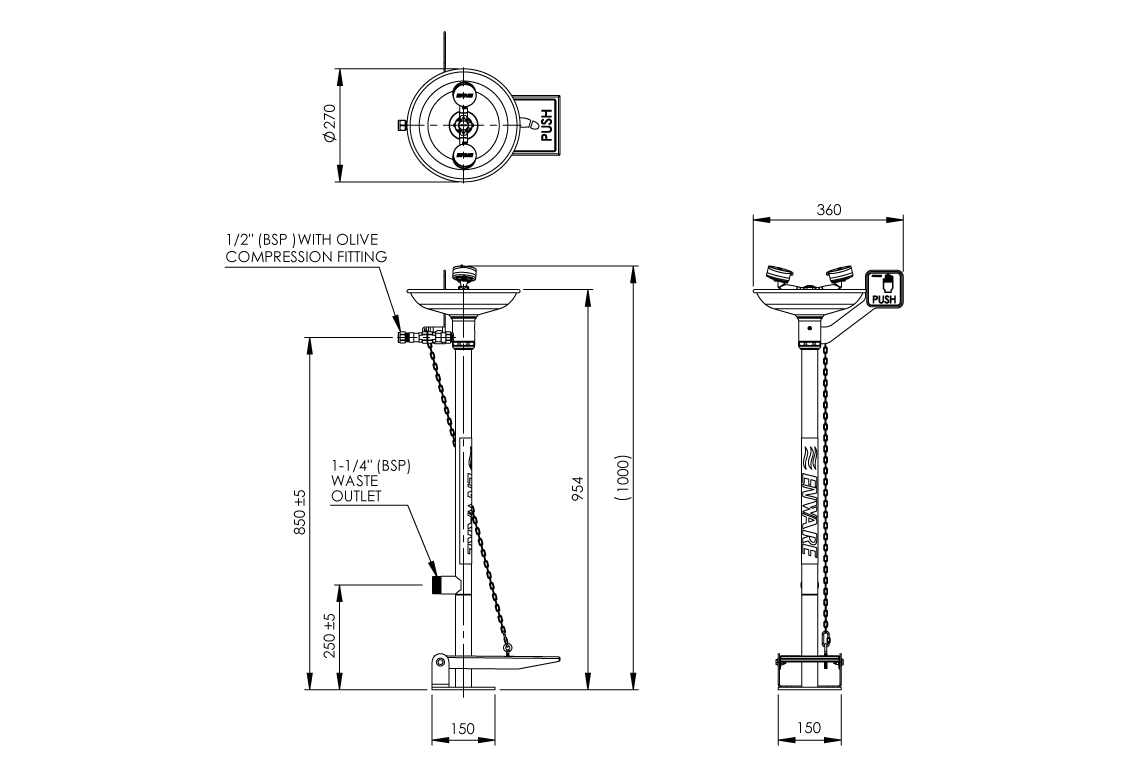

Inlet & Outlet
| Inlet Connection | 15mm (1/2" BSP) |
Flow Rate
| Minimum Performance Requirements – Min Flow Requirements | 26 lpm (6.9 US gpm) |
| Minimum Performance Requirements – Min Working Pressure | 210kPa |
Water Supply
| Water Supply Line Size | Must be hydraulically sized to meet requirements |
| Product Code | Description | FINISH | VALVE | |
|---|---|---|---|---|
| EFE390 | Emergency Eye/Face Wash Pedestal Mounted Hand/Foot Operated – Brushed Stainless Finish | Brushed Stainless | Ball Valve | Add to spec |
| EFE390GR | Emergency Eye/Face Wash Pedestal Mounted Hand/Foot Operated – Powder Coated Finish – GREEN | Powder Coating | Ball Valve | Add to spec |
| EFE390WH | Emergency Eye/Face Wash Pedestal Mounted Hand/Foot Operated – Powder Coated Finish – WHITE | Powder Coating | Ball Valve | Add to spec |
| EFE390YE | Emergency Eye/Face Wash Pedestal Mounted Hand/Foot Operated – Powder Coated Finish – YELLOW | Powder Coating | Ball Valve | Add to spec |
